Hello, just tried to etch some D2 with vinegar to see if the carbides could be readily ID'd from surrounding steel. Vinegar soak for 6 hours wound up being way too long, next time will stop at 1 hr intervals. Edge is completely eroded, so carbide presentation along cutting edge is lost this time around. Carbides held onto scratch patterns - sharpened on SIC. Carbide size runs from low 20u down to single digit microns, most in the 5-12 range.

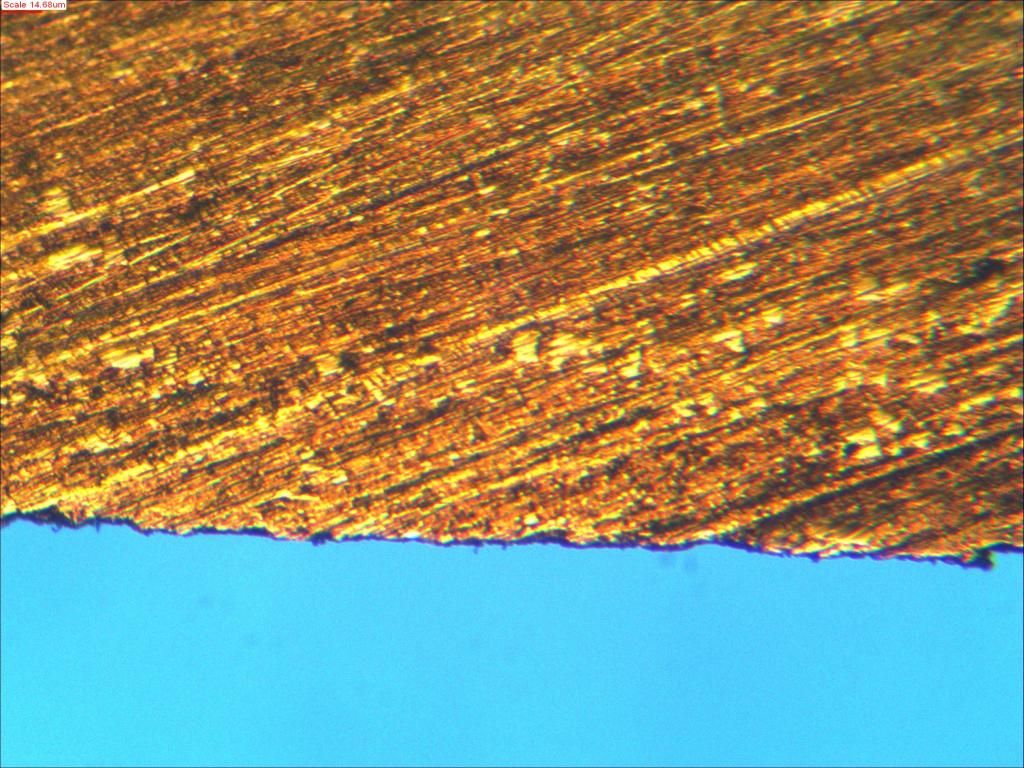

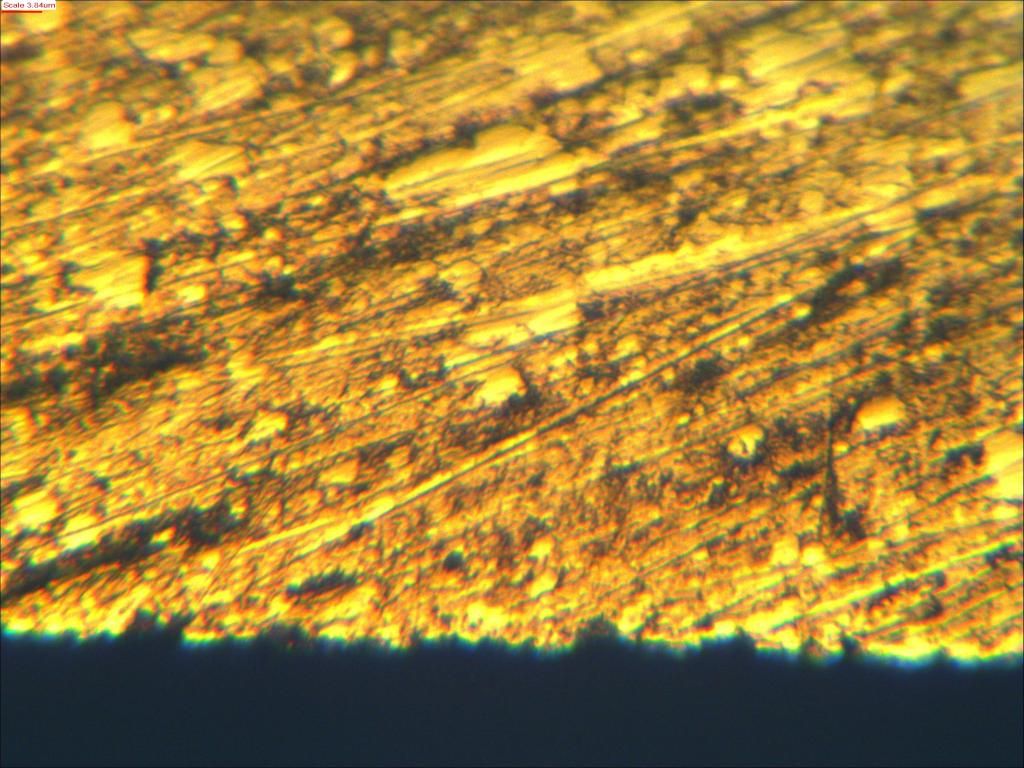

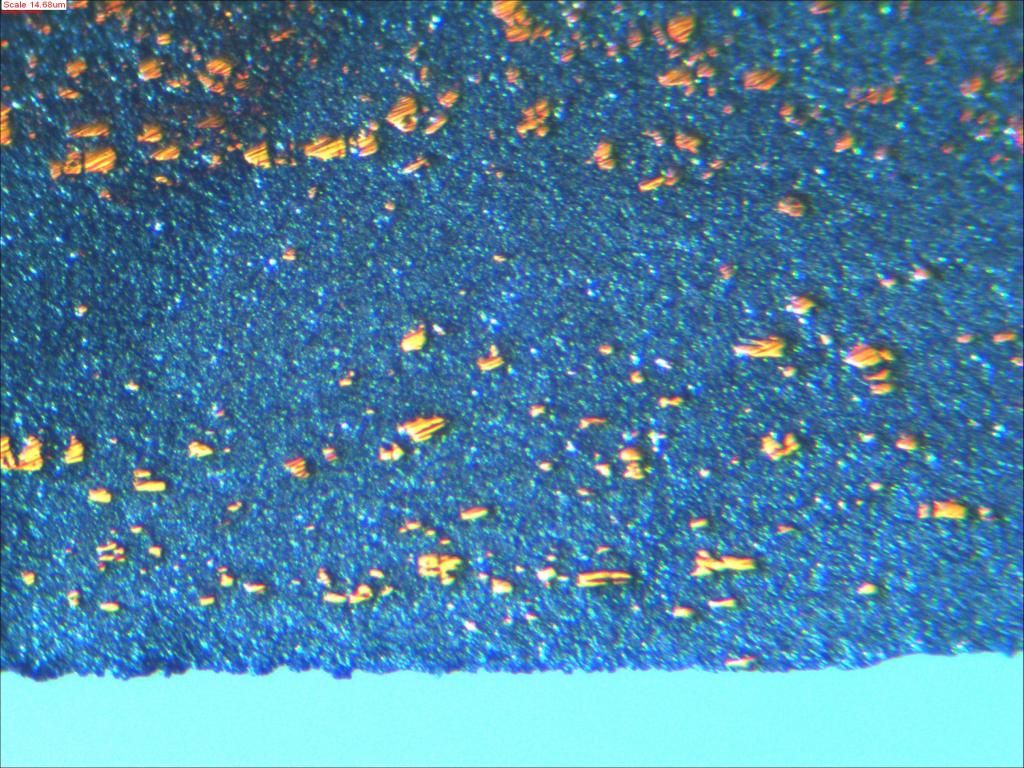

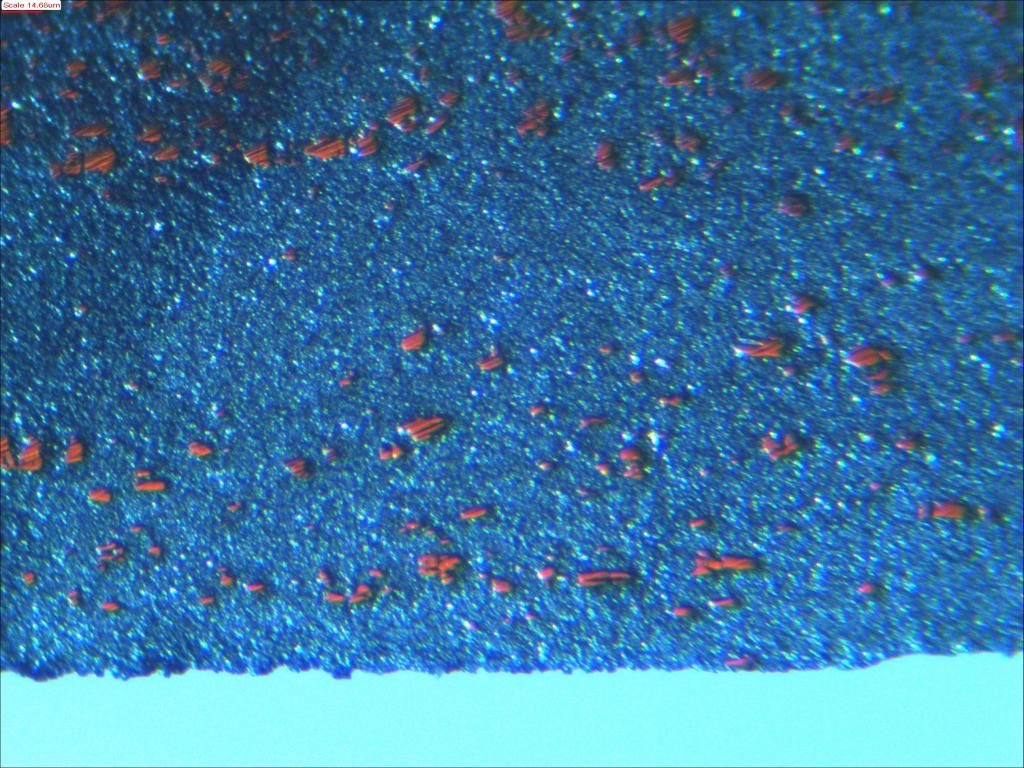

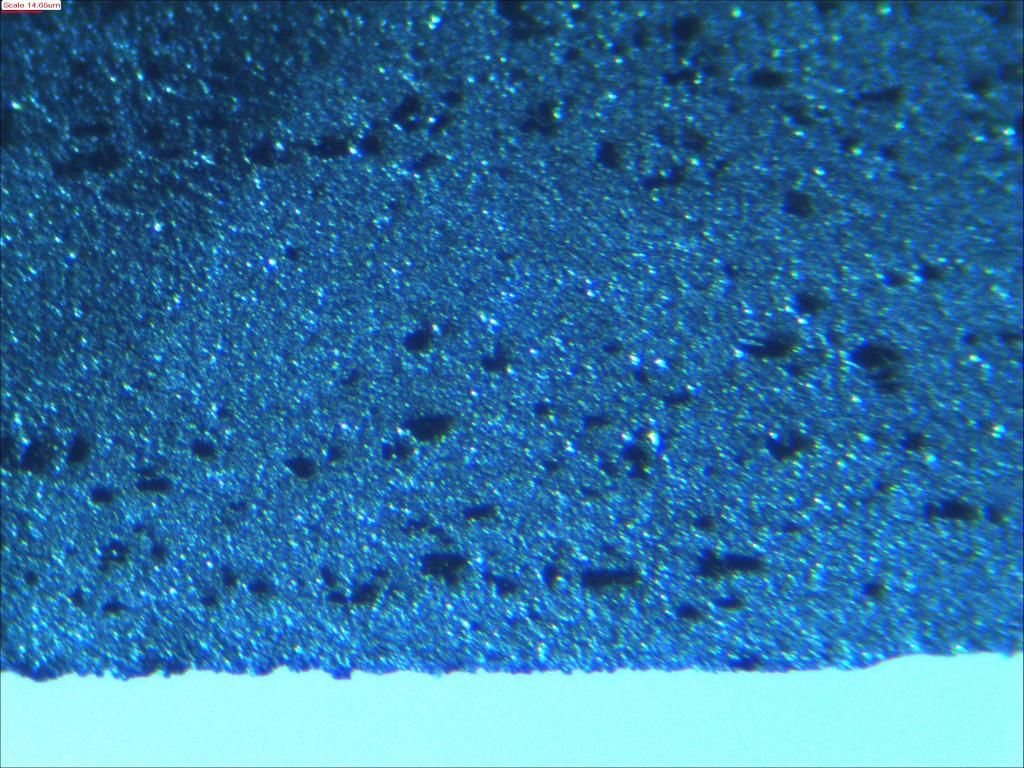

Will have to time the soak so most of the edge stays intact. All pics at 100x, started out sidelit and backlit. I dialed up the surface illumination slowly.

Pretty cool, have often wondered if this could be determined at relatively coarse finish values (real metallurgical sampling is generally done at polish levels in the submicron range, this was finished with my compound, approx 3-4u finish.












Great photos, heavyhanded!

I think, correct me if I am wrong, that most of those carbides are going to be too small to really affect the edge off of the SIC stone. You would have to go to a much finer finish before the carbides started to negitively affect the edge.

That's NEAT, and very illustrative. Makes it easier to see how the steel would 'skate' on those larger and harder carbides, if attempting to hone on inadequate abrasives.

Nice work Martin. :thumbup:


David

Great photos, heavyhanded!

I think, correct me if I am wrong, that most of those carbides are going to be too small to really affect the edge off of the SIC stone. You would have to go to a much finer finish before the carbides started to negitively affect the edge.

Am pretty sure they will have a big positive effect at any grit value, what remains to be seen is how they look with a much shorter soak. I have no reason to believe they won't be incorporated into the edge at fairly close intervals, and with grind patterns included. So while I prefer a relatively coarse finish on this steel, I have also run it up to a pretty high polish on diamond stone and it performed very well. Did seem to lead to a shorter life, but is all anecdotal, I did no actual testing.

Looking at these images really makes me consider the mechanical attachment of these carbides into the surrounding structure. I keep wondering that the rougher finish might allow for stronger physical attachment of the larger carbides, especially in this steel. If that is so, you may be correct about the finer finish leading to some negative (or less positive) effect.

When it comes to steels with higher Vanadium content and higher RC, is possible that physical anchoring is much more durable due to finer grain size of the steel and overall toughness - handling a greater variety of edge finishes equally well. This would be in line with how folks chime in, yet it seems most D2 users (not all) prefer a somewhat rougher finish.

As I've said before, not every observation merits a conclusion, not even a tentative one - is enough to point toward the next observation. There is one conclusion that can be made - this sample of D2 has carbides in the 8-12u range mostly with outliers in the low 20s to low single digits. We've been told that but is another matter to see it in such relief.

Am pretty sure they will have a big positive effect at any grit value, what remains to be seen is how they look with a much shorter soak. I have no reason to believe they won't be incorporated into the edge at fairly close intervals, and with grind patterns included. So while I prefer a relatively coarse finish on this steel, I have also run it up to a pretty high polish on diamond stone and it performed very well. Did seem to lead to a shorter life, but is all anecdotal, I did no actual testing.

Looking at these images really makes me consider the mechanical attachment of these carbides into the surrounding structure. I keep wondering that the rougher finish might allow for stronger physical attachment of the larger carbides, especially in this steel. If that is so, you may be correct about the finer finish leading to some negative (or less positive) effect.

When it comes to steels with higher Vanadium content and higher RC, is possible that physical anchoring is much more durable due to finer grain size of the steel and overall toughness - handling a greater variety of edge finishes equally well. This would be in line with how folks chime in, yet it seems most D2 users (not all) prefer a somewhat rougher finish.

As I've said before, not every observation merits a conclusion, not even a tentative one - is enough to point toward the next observation. There is one conclusion that can be made - this sample of D2 has carbides in the 8-12u range mostly with outliers in the low 20s to low single digits. We've been told that but is another matter to see it in such relief.

I guess that I am wrong then! Thank you for correcting me. My typical method of reprofiling and sharpening D2 is to use the fine side of an SIC stone. Then strop on white compound on paper around a stone. I REALLY like the finish this leaves. It can push and draw cut both. But it isn't dedicated to type of edge. I don't really know what effect the carbides would have on that type of edge. I always thought that the carbides would keep D2 from having a that fine of an edge. What kind of effect should I be watching for the carbides to have on my edges?

So long as the carbides are abraded with finer abrasives capable of honing them (think: diamond/AlOx/SiC at sub-5µ grit sizes), their size won't matter much in how fine the edge can be. If anyone's ever shaved smoothly and comfortably with a polished D2 edge, they've already proven this point to themselves; maybe without realizing it. A smooth-shaving edge is usually regarded as having an apex less than ~1µ wide and appropriately thin geometry behind it. This means that any of those 10-20µ carbides (and even larger in other variants of D2) would had to have been 'honed' down to comfortable shaving thinness, to make that happen.

D2 does great at a polished finish (depending on use, as always), though it takes longer to get it there. The main impact of hard carbides that big is, they're just much, much slower to hone down to size with enough finesse to avoid knocking them out of the edge. That's what I've consistently noticed about the character of (non-PM) D2, over any other of it's attributes; it just takes longer to refine. I'm sure this is why most will 'prefer' a coarser edge on D2, as it's just plain easier to get it done; something like a Fine DMT would leave a great working edge on it, and do it quickly.


David

Last edited:
This looks and sounds amazing

BUT...............TIME OUT

Please explain to those of us that are not in the know
Please be technical but simple


Most of my D2 sharpening is on Queen D2 slipjoints (more than a few)
I use the DMT Aligner for E course to E Fine and then strop with white compound
Maintaining the edge is a couple of swipes with an old DMT E Fine and a couple of strops with white compound
It looses arm hair shaving sharp quite quickly, but stays working sharp for a long long time
Queen 1095 can stay arm hair shaving sharp for longer, then drops off much faster than the D2

Does the heat treat change the size of the carbides?
I just purchased a Becker Eskabar BK24 in D2
It was much much faster to re-bevel on the DMTs than the Queen PH Heat Treat
Re-beveling a Queen D2 is a lot of work, and I found the Eskabar to be less than half the time for a similar length blade
Is this due to the heat treat and hardness?

So long as the carbides are abraded with finer abrasives capable of honing them (think: diamond/AlOx/SiC at sub-5µ grit sizes), their size won't matter much in how fine the edge can be. If anyone's ever shaved smoothly and comfortably with a polished D2 edge, they've already proven this point to themselves; maybe without realizing it. A smooth-shaving edge is usually regarded as having an apex less than ~1µ wide and appropriately thin geometry behind it. This means that any of those 10-20µ carbides (and even larger in other variants of D2) would had to have been 'honed' down to comfortable shaving thinness, to make that happen.

D2 does great at a polished finish (depending on use, as always), though it takes longer to get it there. The main impact of hard carbides that big is, they're just much, much slower to hone down to size with enough finesse to avoid knocking them out of the edge. That's what I've consistently noticed about the character of (non-PM) D2, over any other of it's attributes; it just takes longer to refine. I'm sure this is why most will 'prefer' a coarser edge on D2, as it's just plain easier to get it done; something like a Fine DMT would leave a great working edge on it, and do it quickly.


David

This looks and sounds amazing

BUT...............TIME OUT

Please explain to those of us that are not in the know
Please be technical but simple


Most of my D2 sharpening is on Queen D2 slipjoints (more than a few)
I use the DMT Aligner for E course to E Fine and then strop with white compound
Maintaining the edge is a couple of swipes with an old DMT E Fine and a couple of strops with white compound
It looses arm hair shaving sharp quite quickly, but stays working sharp for a long long time
Queen 1095 can stay arm hair shaving sharp for longer, then drops off much faster than the D2

Does the heat treat change the size of the carbides?

My experience has been the same as Neeman's with Queen D2. It loses it's fine edge to working sharp quickly then maintains that. "D2 takes a crappy edge, and keeps it forever" being the quip.

Large carbide size and a fine edge has been discussed before and as usual Dave has a well defined, clear answer. It's possible to have both, but a bit difficult.

Dave, what about carbide pull out in use and a fine edge with large carbides. (if that edge has been achieved with the proper abrasive) I would think no biggy from your post, but just to be anal about it. (who me?)

Last edited:
I guess that I am wrong then! Thank you for correcting me. My typical method of reprofiling and sharpening D2 is to use the fine side of an SIC stone. Then strop on white compound on paper around a stone. I REALLY like the finish this leaves. It can push and draw cut both. But it isn't dedicated to type of edge. I don't really know what effect the carbides would have on that type of edge. I always thought that the carbides would keep D2 from having a that fine of an edge. What kind of effect should I be watching for the carbides to have on my edges?

Lots of food for thought and I hope to make some headway on edge wear but will likely be very difficult to pin down. Any etching results in wear on the edge, so I'll have to index a before and after in terms of carbide wear, breakout etc to figure out what is genuine and what is from the etch.

My speculation is that the larger sized carbides very well might break out of the edge in use. When you think about it, some amount is almost inevitable. The larger size means less surface area in contact with surrounding steel to begin with (the smaller the object, the larger its surface area becomes relative to its dimensions and vise versa). It would be theoretically much easier to bust out than smaller carbides in the same steel. Is interesting that in the images I took, and in inspecting the entire edge, I saw very few carbides at the actual cutting edge, maybe four or five along the entire length, yet there should have been some there based on the overall density of the carbides in the steel.

Speculation is that the etch removed enough steel for them all to fall out, and this implies there is a minimum amount of steel support need per carbide, beneath which the carbides fall out. The knife wasn't used after being sharpened. While it is certainly possible to refine this sample of D2 to a high degree, my experience is that edge life suffers no matter wat abrasives are used, so my experience would lead me to conclude your edge prep is a pretty good choice. I usually stop at approx a 600-800 grit edge, in practice I've gotten better longevity from stopping closer to 300 grit but the edge struggles with pressure cutting at that finish so I go a little finer.

Lots of unknowns, Vanadium carbides form with a range of hardness, no reason to believe Chromium carbides are any different. Further speculation is that the differences in how difficult to sharpen D2 from various makers could easily be a factor of Rockwell C and quite possibly the HT determines to some extent the size of the carbides as well as their individual toughness. After all, the specific amounts of alloying elements are the same from one billet of D2 to the next, so it must come down to the HT to determine how the carbides precipitate out? Someone with a lot more knowledge than I will have to fill that in.

In this reprofile s110v using SiC stone, I talk about difficulty of sharpening/reprofile D2
just for ref, no need to watch: https://www.youtube.com/watch?v=36COals5xEA

Excerpt from my yt comment
...
Take 1000um^3 (cubic chunk) of D2. About 2% volume is carbide, hence 20um^3. Assuming carbide even distribution. To have a carbide per every 10um^3 matrix cell, the carbide size = 20/100 = 0.2um^3. This carbide coverage shield matrix from abrasion, from use and sharpening. The gap of unprotected matrix is the chink of this armor where matrix & carbide can be abrade away.

With strong matrix (i.e. fine grain) and fine carbide (sub micron) - you get great edge retention. Use hard & sharp & small-cutting tips (sub 20um) abrasive(diamond/cbn) for ease of sharpening.

Carbon and other low-VC steels are easier per say because combination of: low carbide % and or softer carbide type(Fe3C, CrC), hence more & cheaper & sharper abrasive beside diamond/cbn can be use (SiC, AlO, ceramic,...). Hypothetically if a steel has 3.5%C + 2.5%Cr (and not turn into cast iron after ht) and carbide(Fe3C & CrC) are 50um in size and uniformly distributed. At high HRC, this steel would be very difficult to sharpening when using abrasive grit larger than 10um.


Martin - from your pics + D2 2% carbide volume, vinegar etch didn't/hardly corrode carbides nor matrix away. Look like Eskabar D2 ht is suboptimal.

Hearing about Queen D2 hard to reprofile/sharpen, sound like their ht must produced finer & more evenly distributed carbides.

So the HT is what determines carbide size and distribution. As with carbon steel no carbides, mightn't there be a toughness advantage to the (presumably) lower RC of the Eskabar at cost of wear resistance/edge retention - indicated by the size of the carbides. Also tending this example to be better suited to a rougher finish?

I know next to nothing about HT, especially as relates to carbide formation.

Edit to add: I did a 1/2hr soak after resharpening that blade on 600 grit (10u) jointer stone. The carbides are visibly apparent at 15x with strong lighting, edge still crosscuts newsprint, so the apex should be mostly intact. Will take more pics tonight, time allowing.

Let's call PM process as a pre-ht, which simplify hardening ht later. At appropriate temperatures & thermal cycling grain & carbide can be refine, whereas distributing non-FeC carbides is difficult because many problem manifest at temperature high enough for elements to freely diffuse/distribute.

D2 with low rc & coarse finish allow carbides to anchor among teeth, plus allow matrix to abrade or plastic-flow/burning away to uncover carbide from below. These newly exposed carbide will be quite strong due to stronger matrix bonding around them. I wouldn't call these edge sharp, it's more like a mini saw with blunted teeth tip.

Good ht D2 at high rc can be easily deploy fine or coarse edge, and resulted teeth tip would be more sharp than blunted in case of low rc + fat carbides.

Cutting tip (at normal sharpening pressure) for 10um abrasive would be around 1-2um, which should prevent a lot of carbide from knocking loose from this Eskabar D2 blade.

Note: if this D2 was tempered at secondary hardening range, there would be some fine CrC which not readily show in pics.

So the HT is what determines carbide size and distribution. As with carbon steel no carbides, mightn't there be a toughness advantage to the (presumably) lower RC of the Eskabar at cost of wear resistance/edge retention - indicated by the size of the carbides. Also tending this example to be better suited to a rougher finish?

I know next to nothing about HT, especially as relates to carbide formation.

Edit to add: I did a 1/2hr soak after resharpening that blade on 600 grit (10u) jointer stone. The carbides are visibly apparent at 15x with strong lighting, edge still crosscuts newsprint, so the apex should be mostly intact. Will take more pics tonight, time allowing.

My experience has been the same as Neeman's with Queen D2. It loses it's fine edge to working sharp quickly then maintains that. "D2 takes a crappy edge, and keeps it forever" being the quip.

Large carbide size and a fine edge has been discussed before and as usual Dave has a well defined, clear answer. It's possible to have both, but a bit difficult.

Dave, what about carbide pull out in use and a fine edge with large carbides. (if that edge has been achieved with the proper abrasive) I would think no biggy from your post, but just to be anal about it. (who me?)

For what it's worth, most of the D2 blades I've used are Queen. These include a stockman (3 blades), Country Cousin (1), and a fixed blade. All of them are finished to something beyond 2000+ grit, which leaves them at essentially mirror by naked eye. They've held up great, with the only touch-up maintenance being done on a denim/fabric hard-backed strop with some AlOx compound (best results with Ryobi White Rouge @ 2-5µ). The edges have been more stable at this finish than most any other steel I've finished similarly, and they've held hair-popping edges very well. In particular, I've liked how these polished edges handle heavy cardboard, and still retain shaving sharpness afterward.

If cutting is degrading quickly with polished edges in Queen's D2, I'd first look at thinning the geometry. Seems counter-intuitive, I know. But geometry is what makes the biggest difference in cutting, especially with shaving sharpness; it's no surprise that razors are ground to ~15° inclusive, for good reason. My thinnest D2 blade is likely the Queen fixed blade (thinned it a LOT, and yes, it took a LONG time), and it has been continually stunning me in the fine edge it takes and holds. All of mine are thinned to 30° inclusive or less, and that fixed blade is somewhat thinner than the rest, at the edge, maybe below 25° inclusive. I've yet to see a rolled edge on any of them, which is notably different than any other of my knives at similar geometry.

BTW, I seem to recall reading that the size of carbides (Chromium, Vanadium) is primarily determined during steel's manufacture, when the carbides form in the first place, as opposed to heat treat, which I assume affects it, but to some lesser degree. There'd be no real advantage to PM manufacturing processes (the goal of which is to reduce their size and minimize segregation, thereby improving distribution), if the carbide size was dependent only on heat treat later on, it seems to me. Queen has been known for the large carbides in the D2 they use (don't know who manufactures it for them, though). There has been an interesting post, some time back, from someone using vinegar/acid to 'patina' a Queen D2 blade, and the shinier chromium carbides were large enough to see by naked eye, in the pics posted of the blade. I'm convinced it's the larger size of the carbides in those blades, that gives Queen's D2 a reputation for being difficult to refine (but not impossible).

Quoted from Crucible, re: carbide size and distribution in non-PM manufactured steels:
"Effect of Steel Manufacturing on Properties
The maximum practical limit to the amount of carbide-forming elements which may be added to a steel for wear properties depends on the ability to maintain a reasonable distribution of those carbides throughout the steel’s microstructure. When steels are manufactured, they are melted in large batches, containing the desired chemical composition. The batches are poured into ingot molds, and solidify into castings which are subsequently forged or rolled into bars. During the solidification process, the carbides are formed. Under conditions of long slow solidification, these carbides form interconnected “segregated” networks, because they do not stay dissolved in the liquid steel. Large amounts of carbide particles result in more segregation, and thus more non-uniformity in the steel microstructure."

The large (or HUGE) carbide clumps we see in the finished product are the 'segregated networks' of smaller carbides clustered and interconnected together as a result of the non-PM manufacturing process.


David

Last edited:
Note: if this D2 was tempered at secondary hardening range, there would be some fine CrC which not readily show in pics.

The smallest appear to be maybe in the 1-2u range. There may be smaller that fall out once exposed by the etch, but I am doubtful. Will learn more with next pics.

The large (or HUGE) carbide clumps we see in the finished product are the 'segregated networks' of smaller carbides clustered and interconnected together as a result of the non-PM manufacturing process.


David

Does this imply that unless the steel is heated back up into liquid state, the D2 from Eskabar and the D2 from Queen should realistically be nearly identical in composition and vary mostly in RC. Again, assuming the knives are ground from billets and not reheated to flow. If I recall correctly, even hot forging doesn't heat the steel up to more than half of what it takes to melt it.

Does this imply that unless the steel is heated back up into liquid state, the D2 from Eskabar and the D2 from Queen should realistically be nearly identical in composition and vary mostly in RC. Again, assuming the knives are ground from billets and not reheated to flow. If I recall correctly, even hot forging doesn't heat the steel up to more than half of what it takes to melt it.

Everything I've ever read about D2 says it varies all over the place, according to how it's manufactured (and I'm beginning to see this is true of any steel, for that matter). Some versions of D2 apparently have these segregated 'clusters' of chromium carbides at sizes of 50µ or more. I don't know if re-melting the steel would improve on what state the manufacturer left it in; I'm inclined to believe it won't, as the 'segregation' of the smaller carbides into larger clumps seems to be the natural tendency of the steel's behavior as it cools & solidifies. If that's actually the case, I'd think re-heating or re-melting the steel would likely make it worse. The quote I referenced from Crucible seems to imply the rate at which the molten metal cools plays a big part in segregation (described as 'conditions of long slow solidification'); the slower it cools, the more 'movement' of the carbides into segregated networks. I'd assume, if there were a way to reduce the segregation (or 'de-segregate' is probably more accurate) just by re-melting, manufacturers would already be doing it, in lieu of the PM process.

(all speculative, but that's how I've come to understand what I read about it)


David

Last edited:
Steel phase transformation, where carbide dissolution taken place mostly from 1600+F. We are talking about carbide grain refinement here, while not about re-distributing elements in liquid form. However you can manipulate elements movement at non-liquid state by local diffusion & re-orientation, hence require many thermal cycles. Note - VC dissolution require temp exceed 2200F.

This pdf will give a glimpse into carbide refinement - http://www.comat.cz/files/proceedings/11/reports/1228.pdf

And google steel phase transformation if you want to learn more.

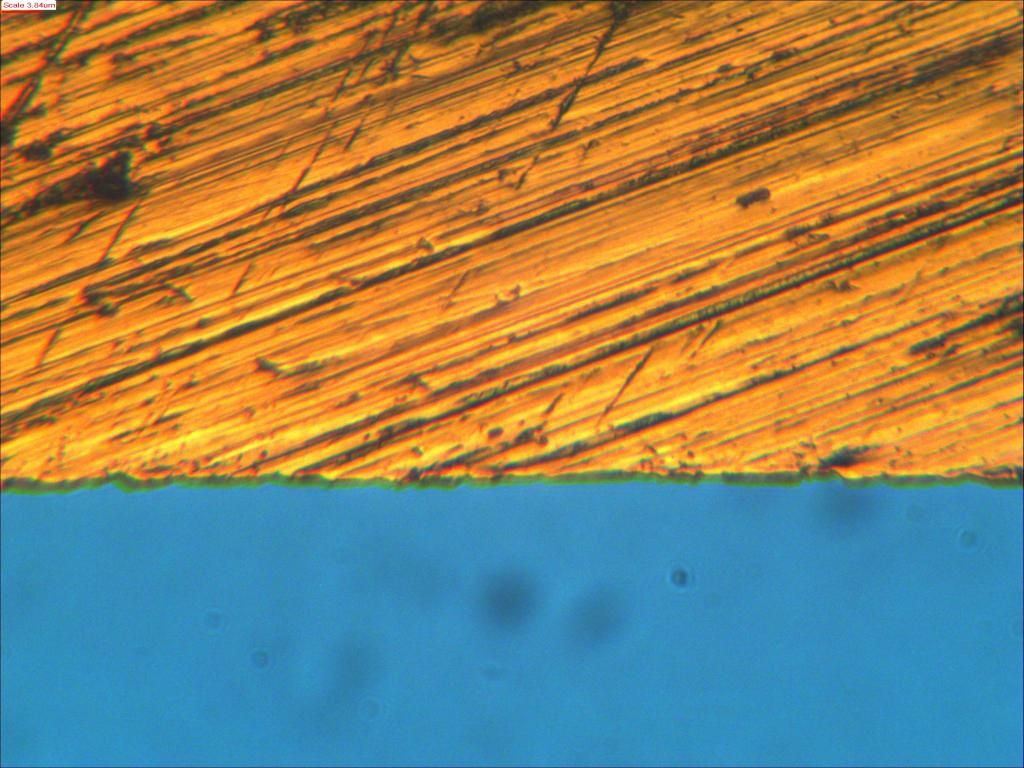

OK, took a few new pics. As suspected, the etch quickly ruins the original morphology to some extent, and makes it very tough to ID the carbides in their natural state. Am wondering if instead of an etch, some sort of extremely thin stain can be used to ID the carbides based on fine porosity (really reaching here)?

Anyway, here are the pics at 100 and 400x. It is apparent that there is a much greater concentration of carbides than is visible in the earlier series with heavy etching. This go round was a half hour soak, maybe could have gone another 15 minutes without too many of the finer carbides falling out, and maybe a bit more contrast. Mean carbide size still looks to be in the range of 30u and 1u. They pack in tight right to the edge

I also thought I could make out some banding or striations to the carbide formations, but am unable to get the camera to image it. For reference (and to put in a plug for the WB) I included a pic of the edge reconditioned afterward using only WB with compound on paper. I likely did not start out looking like that prior to the soak, was a good deal rougher - the 10u jointer stone makes a good edge, but not as refined as that. Clean up your edge!

I have some work to do if I want to really be able to tell what the carbides are doing, especially after some use - considering how many there are in the steel, there is scant evidence of them following the paper strop. A few pits where I suspect a larger carbide could no longer hold on.

I wonder if this sort of soak could be used to eliminate burrs, also wonder if I couldn't set up a precision etch bath and leave it on the microscope stage to get time lapse images.

100x


400x


400x, post Washboard


Edit to add: this explains in clear detail why I don't recommend really trying to paper burnish high carbide steel, even the non-Vanadium stuff...

Last edited:
400x pic - lumps/bumps we are seeing, I don't think they are carbide. Carbide density can't be that high, since D2 has only 2% carbide volume. Google a few D2 carbide images, clearly carbide distribution is more sparse.
