Like to look at a 110 diagram.

[Flatlander1963]

Couldn't google one up but I seem to remember seeing one somewhere before.

Anyone got a parts diagram for the 110 or 112? Thanks g



[A.P.F.]

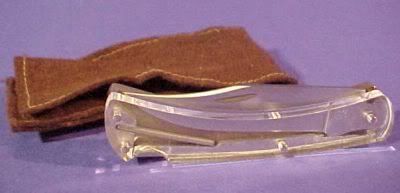

I don't remember who to credit these pics to, so my appologies to the photographer(s). (Darryl? Chris? Trax?)

Anyway, these should give you a good idea, Flatlander.



[110 Dave]

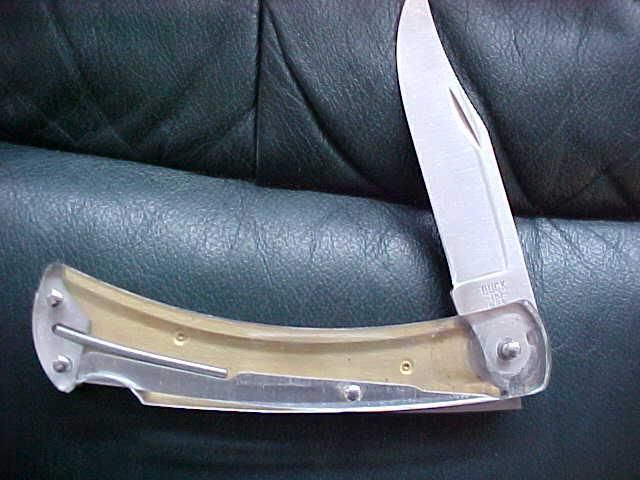

well i dont have a diagram... would this do tell one comes along?

gee 30 sec late again!!!



[A.P.F.]

well i dont have a diagram... would this do tell one comes along?

gee 30 sec late again!!!

Hehe, you weren't late, Dave! I just hit the button by accident.



[Flatlander1963]

Hey thats great Guys. Thanks alot. I've got to get all the bits and piece figured if I'm going to be able to tell the difference between the older Versions.



[Flatlander1963]

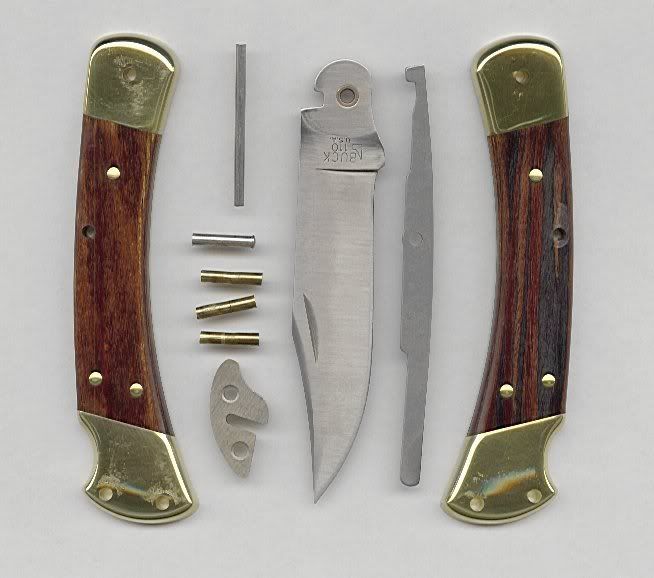

Lets see if I've got the parts correct (from left to right, top to bottom):

Spring, SS Rocker Rivet, Bushing Rivet, 2 Butt Rivets, SS Spring Holder
Blade with brass bushing
SS Rocker

Is that all correct?



[chickentrax]

Spring, SS Rocker Rivet, Bushing Rivet, 2 Butt Rivets, SS Spring Holder
Blade with brass bushing
SS Rocker

"Bushing rivet" is the blade rivet...you got the location right...



[110 Dave]

"Bushing rivet" is the blade rivet...you got the location right...

See this is the type of swift biteing commentary you are becomeing so well gome for ...



[chickentrax]

I don't remember who to credit these pics to, so my appologies to the photographer(s).

The parts pic is actually an older one...I replaced it in the old thread with a pic showing one scale/liner upside down & one rightside up, so everyone could see the hollow rivets installed inside out...

...Looks like I deleted the wrong pic...



[Flatlander1963]

"Bushing rivet" is the blade rivet...you got the location right...

Is there not a brass bushing in that blade???
