2 x 48 Horizontal Belt Grinder Build

I revised the access priveleges. They should be available via their respective links now. Let me know if there's still a problem.



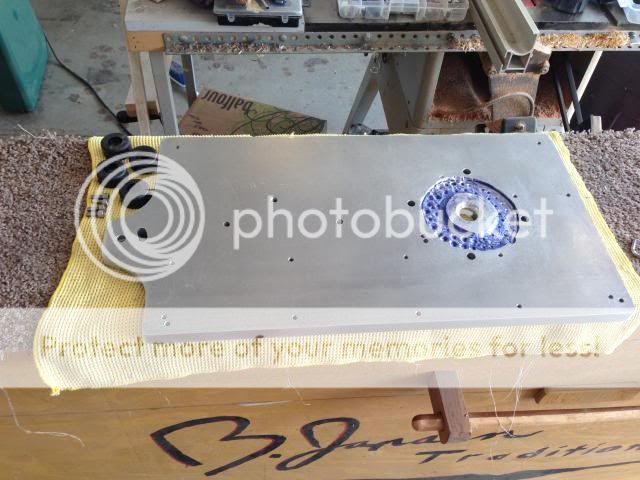

Can you tell us more about that blue recessed circle that's full of holes?

I suspect it's to get past the circle ring mount on the motor?


What did you do there and why not just cut it out completely ?

Last edited:
Yes, that is my crude way of removing material to recess the 56C motor face. I did this primarily to allow for more shaft to be through on the other side.

You certainly could have skipped that step, and just bolted the motor down as that proud surface on the 56C motor face is flat... but there is not much motor shaft to work with to begin, thus another 1/4" I thought might be a good idea. You could also have cut it all out, but then you would have large hole in the plate for chips and dust to fall in

Cosimo De Benedetto said:
Buongiorno signore,
Potrei avere anche i piani se ancora disponibili.
grazie mille e buona giornata
Cosimo
Click to expand...
I don't think he published plans for the small version. You can find the plans for the 2x72 here and modify them for the smaller size:

Free 2 x 72 belt grinder plans - 2020 version

Hello, I have been designing and building my own version of a 2x72" belt grinder for a number of years and I made some modifications over the years to where they are now. Recently, a talented CAD user (who was building a grinder off my plans) was courteous enough to model the grinder and each...
www.bladeforums.com www.bladeforums.com

Hubert S. said:
Non credo che abbia pubblicato piani per la versione ridotta. Puoi trovare i piani per il 2x72 qui e modificarli per le dimensioni più piccole:

Free 2 x 72 belt grinder plans - 2020 version

Hello, I have been designing and building my own version of a 2x72" belt grinder for a number of years and I made some modifications over the years to where they are now. Recently, a talented CAD user (who was building a grinder off my plans) was courteous enough to model the grinder and each...
www.bladeforums.com www.bladeforums.com
Click to expand...
Grazie mille
Cosimo

Welcome Cosimo.
When looking at threads as a new member look at the date of the postings. This thread is from 2013.

Oooops, you're right. I've got access since I'm signed into Google, but if not it requires a google acct. If you can post your email I can then send them to you.
