Okay, let me get back to this WIP thread. This is where I left off:
They were heat treated, rough machined, welded and tempered.

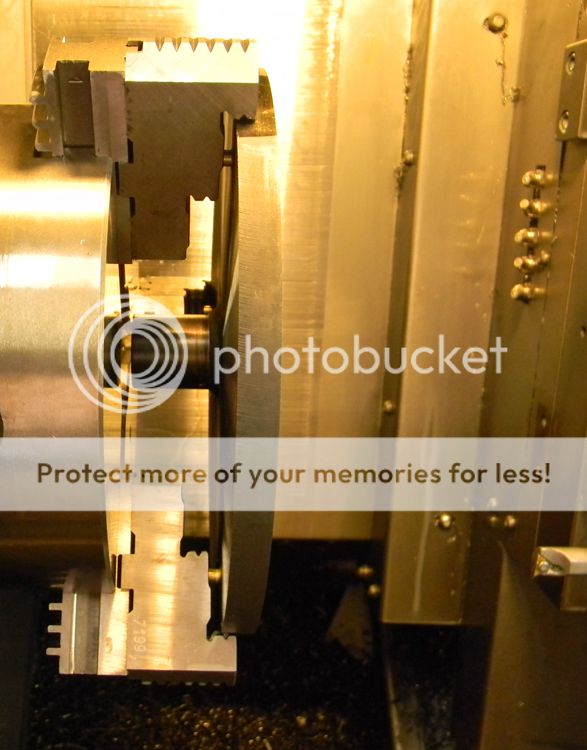

The next step is the most important one. I'm setting up to cut the working face, OD, and then single point bore the ID all in the same setup. Making these cuts without moving anything virtually eliminates any runout on the important surfaces. This is the key to this disk.
Here's the setup, holding it by the outer edge:
And the finished cut:
The bore is .6252 nominal with a total tolerance of about half a thou.
At this point all the precision machining is complete, but I still need to cut the back bevel. I'll need to hold onto the stub to do this, and as you'll recall that stub is just welded onto the disk. Although the bore was single pointed after welding, the OD of the stub was not. So I held it by the OD of the disk with the finish machined face against the chuck and skimmed the diameter of the stub to have a more accurate surface to hold onto for the final turning op.
This will allow me to cut the back bevel with better accuracy. Although the accuracy of the bevel is not that important, if it is off by a lot it will effect the balance. I am balancing these, but it needs to be fairly close to start with and accurate geometry helps.

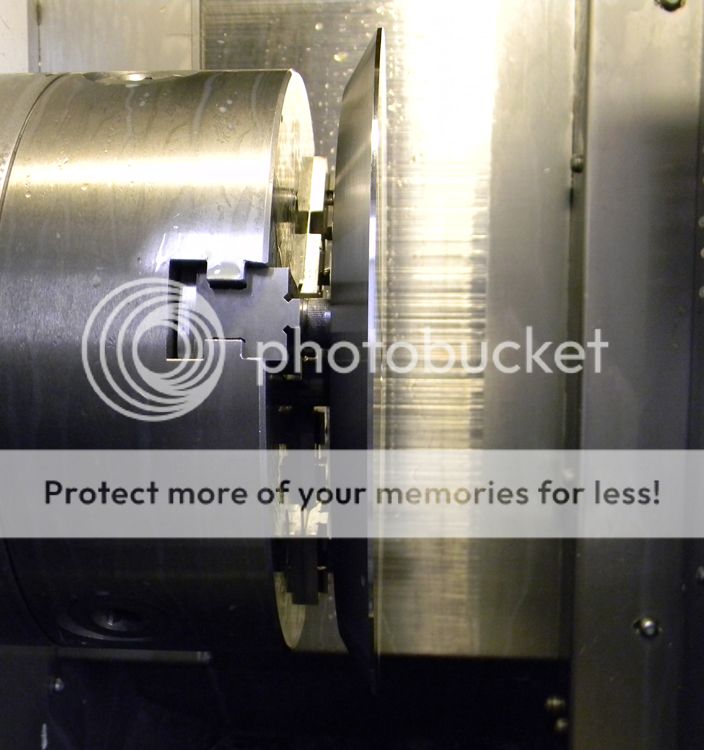

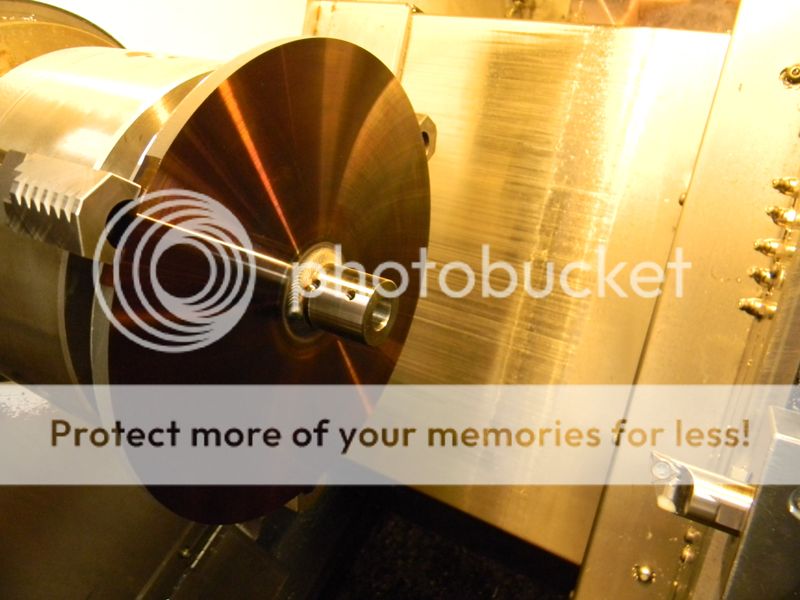

Next I mount a disk by that stub and turn the back bevel:
I'm done turning it. All that is left is to balance it, broach the keyway and test in on a motor.
Edit:
Being a disk rather than something like a shaft it is pretty straight forward to balance. There are a number of different approaches to this, the technique I'm using is commonly used for balancing things like grinding wheels. It is slow but accurate.
This is a technique that any of you can use to balance things like contact wheels, grinding wheels etc. If it is fundamentally a disk shape, this will work.

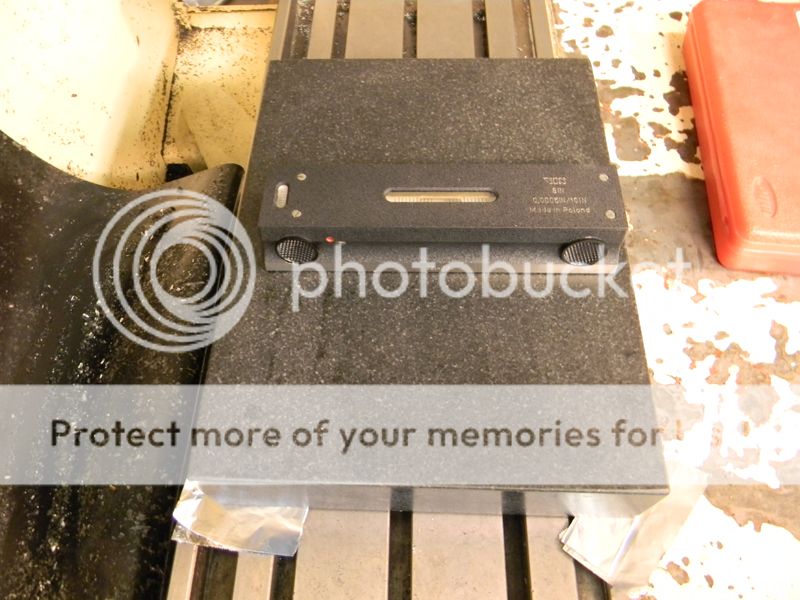

To start I need a flat level surface. I'm sitting a small granite surface plate onto the table of an old small bed mill that is stable and already relatively level. The level is a master precision level with graduations of 50 millionths per inch. They're not too spendy and most machine shops keep one around for measuring and straightening bow and twist from things like lathes. (aside: a "level" lathe isn't necessarily level, it is straight, and you can measure that with a few measurements from a precision level). A sheet of aluminum foil is about half a thou and can be used as a shim to get the plate good and level. With practice this only takes a few minutes.

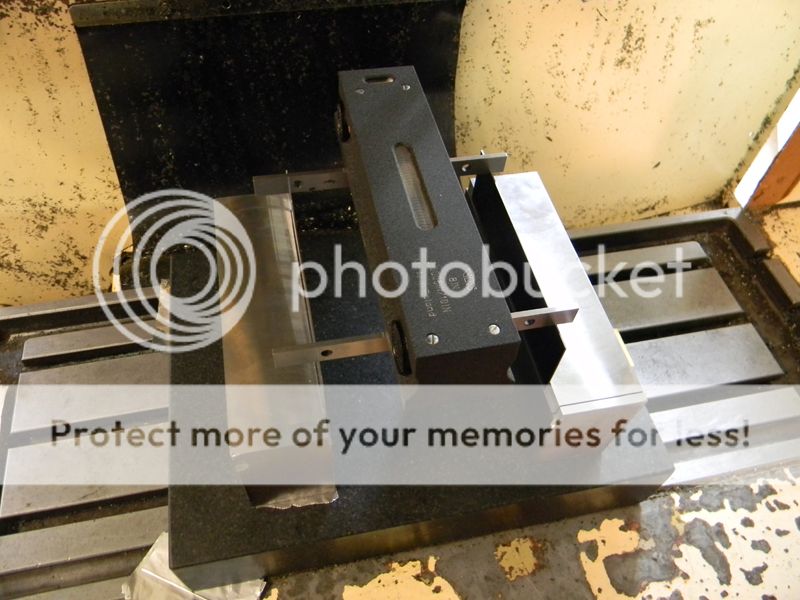

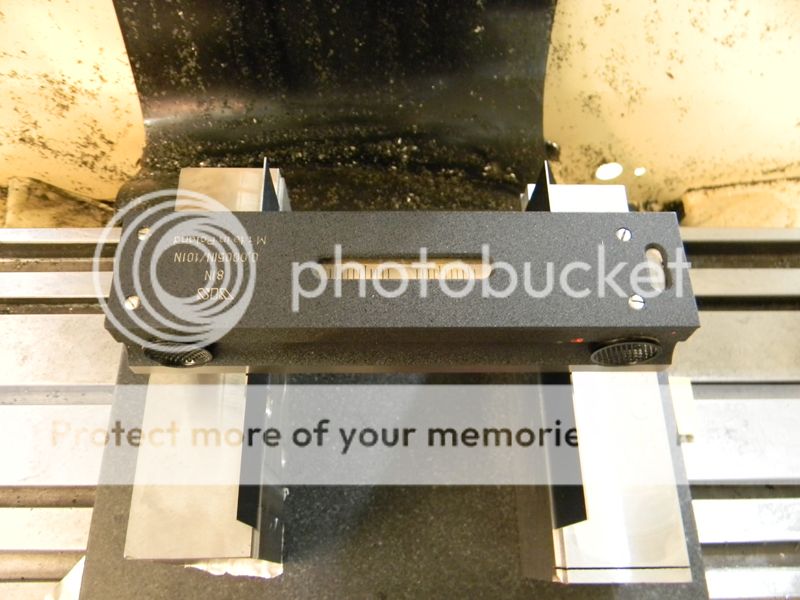

Once the plate is level you need to level a set of blades. I'm using ground precision thin parallels here, but anything that is thin, smooth and precision ground flat will work. First I shim out any twist by measuring level from one end to the other in a series of measurements designed to find the low corners and shim them up.
Then I get the "blades" extremely level front to back.
My balancing setup is level within a couple tenths. With practice you can set this up to this degree of accuracy in about 30 min.
...more later...
They were heat treated, rough machined, welded and tempered.
The next step is the most important one. I'm setting up to cut the working face, OD, and then single point bore the ID all in the same setup. Making these cuts without moving anything virtually eliminates any runout on the important surfaces. This is the key to this disk.
Here's the setup, holding it by the outer edge:
And the finished cut:
The bore is .6252 nominal with a total tolerance of about half a thou.
At this point all the precision machining is complete, but I still need to cut the back bevel. I'll need to hold onto the stub to do this, and as you'll recall that stub is just welded onto the disk. Although the bore was single pointed after welding, the OD of the stub was not. So I held it by the OD of the disk with the finish machined face against the chuck and skimmed the diameter of the stub to have a more accurate surface to hold onto for the final turning op.
This will allow me to cut the back bevel with better accuracy. Although the accuracy of the bevel is not that important, if it is off by a lot it will effect the balance. I am balancing these, but it needs to be fairly close to start with and accurate geometry helps.
Next I mount a disk by that stub and turn the back bevel:
I'm done turning it. All that is left is to balance it, broach the keyway and test in on a motor.
Edit:
Being a disk rather than something like a shaft it is pretty straight forward to balance. There are a number of different approaches to this, the technique I'm using is commonly used for balancing things like grinding wheels. It is slow but accurate.
This is a technique that any of you can use to balance things like contact wheels, grinding wheels etc. If it is fundamentally a disk shape, this will work.
To start I need a flat level surface. I'm sitting a small granite surface plate onto the table of an old small bed mill that is stable and already relatively level. The level is a master precision level with graduations of 50 millionths per inch. They're not too spendy and most machine shops keep one around for measuring and straightening bow and twist from things like lathes. (aside: a "level" lathe isn't necessarily level, it is straight, and you can measure that with a few measurements from a precision level). A sheet of aluminum foil is about half a thou and can be used as a shim to get the plate good and level. With practice this only takes a few minutes.
Once the plate is level you need to level a set of blades. I'm using ground precision thin parallels here, but anything that is thin, smooth and precision ground flat will work. First I shim out any twist by measuring level from one end to the other in a series of measurements designed to find the low corners and shim them up.
Then I get the "blades" extremely level front to back.
My balancing setup is level within a couple tenths. With practice you can set this up to this degree of accuracy in about 30 min.
...more later...
Nathan the Machinist
KnifeMaker / Machinist / Evil Genius
Moderator
Knifemaker / Craftsman / Service Provider
- Joined
- Feb 13, 2007
- Messages
- 17,707
This works on the principle that the heaviest side wants to be on the bottom. It's that simple. However, this is not like hanging a lawnmower blade on a nail to balance it after sharpening, you want much greater accuracy than that. So simply putting the disk on a nail or shaft and letting the heavy side find bottom is far too insensitive, as is mounting it onto bearings or something similar, there's simply too much drag.

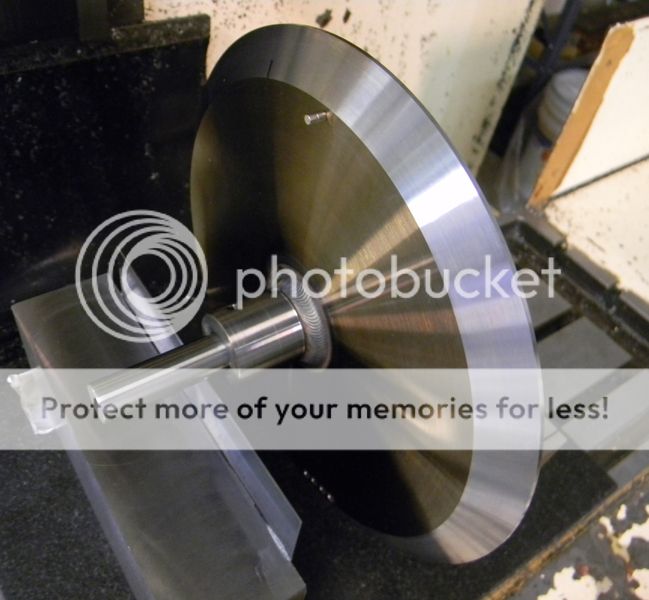

This is done by running an extremely straight, hardened and finely ground shaft through the bore and letting things rest on the very level, very smooth thin ground parallels. There is very little drag or friction or bias of any type and the heavy side will repeatably find the bottom with this setup to within a few thousandths of a ounce. In order for this to work your setup needs to be finely finished and everything needs to be straight and level with no dirt, dents or other imperfections that would cause things to hang up.
So I let everything sit until it stops moving. This takes a few minutes. Once it has settled down I mark the high side with a sharpy. Then I start adding weights to it. I start with my "large" weights which weigh 3/4 of a gram until I find the mass that flips the disk around.

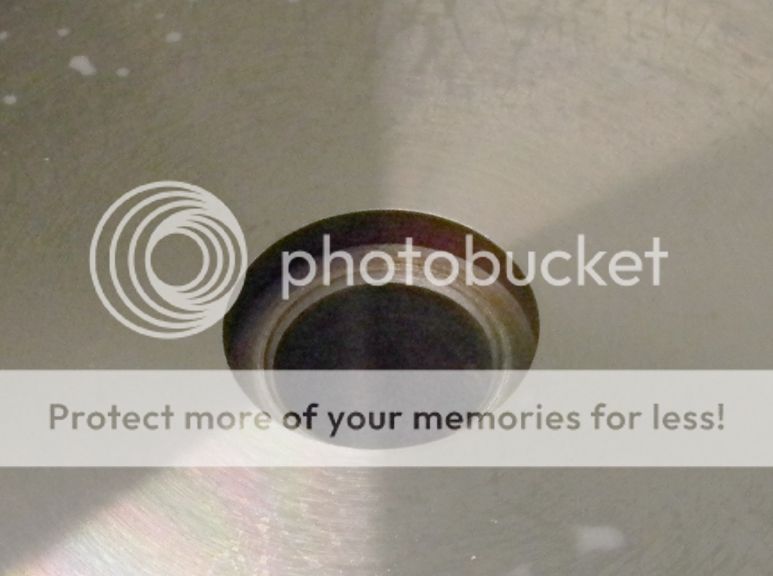

I have a drill mounted in a Bridgeport and I've set the stop on the quill so it drills a hole that removes an equivalent amount of steel as the weight of one weight. So, if a disk needed 5 weights to come around I drill four holes. Then it goes back onto the balancing setup for a finer adjustment. This time with weights that weigh .19 grams.
I repeat the process until it is level enough that a .19 gram weight will pull it around to the bottom regardless of where that weight is added which tells me I'm balanced within 30 thousandths of an ounce inch.
The balancing could be taken finer still, but let's be honest, most folks aren't going to be running these on ABEC7 super precision bearings, and any little amount of runout you have on the spindle in your motor that shifts the axis of the disk away from the axis of rotation is going to affect your balance more than this.
Balancing like this is a slow iterative process, which is going to be a bottle neck in releasing these, so I'll probably do a weekly release of only a few at a time. Please be patient while I process these.

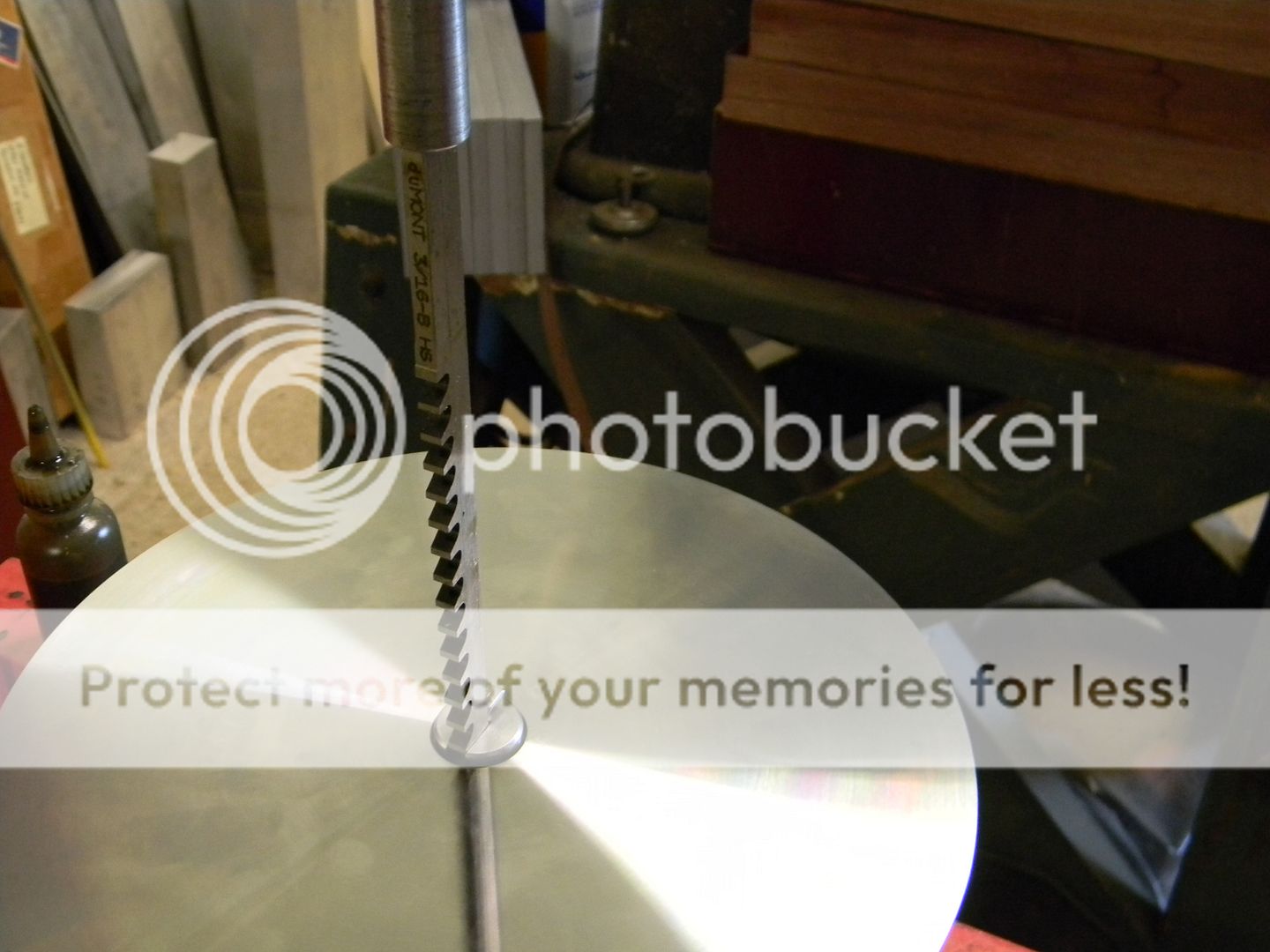

The next step is broaching
Broaching is not rocket science.
I'm balancing before broaching because the material removed in broaching is similar to the material added by the key. The key is generally slightly less, but there is also the added weight of the little set screws, which I think makes it a wash given the small random variations there will be from one person's setup to the next. Given how close these are to the center of rotation the effect is not that great regardless. I tried it both ways and experimented with adding small weights on the same side of and opposite to the key and found that balancing before broach worked a little better.

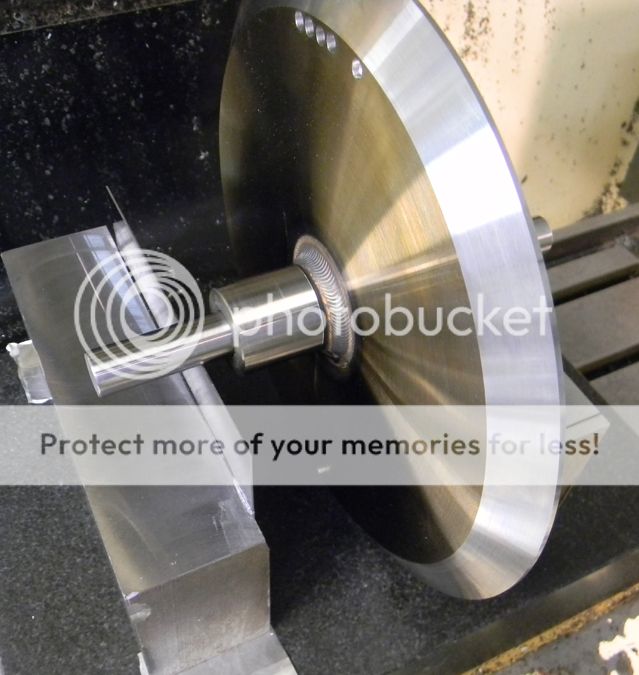

Here's the finished final disk:

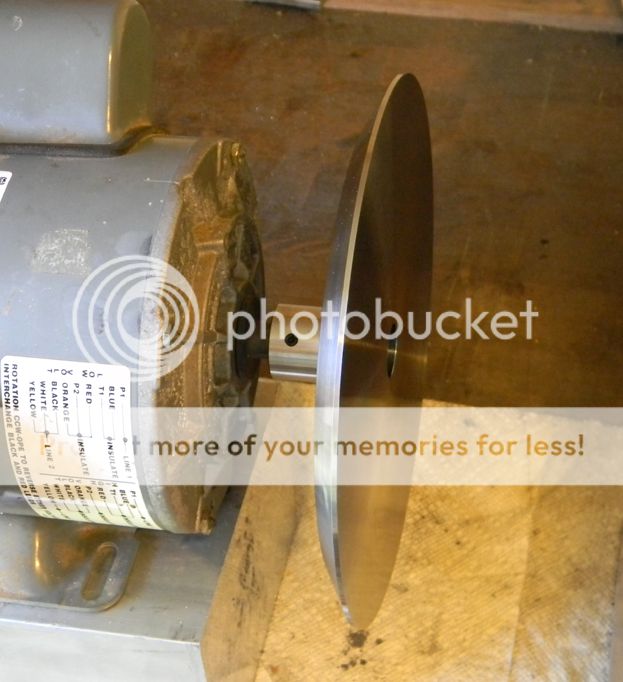

The last thing I do is spin it up on an unmounted motor and let it coast down. The motor is unrestrained so any vibration or other troubles would have an opportunity to show up here. Video if you're curious:
[video=youtube_share;-b_h7NaZxKg]http://youtu.be/-b_h7NaZxKg[/video]
And that completes this WIP.
This project was done at the request of the folks here on this forum. The purpose of this thread was to both illustrate the machining process and also to generate some awareness of the project so that folks would be aware of it when it was finished. So this thread was part documentary and part advertisement. I'd like to extend my gratitude to the folks on this forum for allowing this thread, as I am well aware it is blurring that line between legitimate WIP and overt sales. It is not my intent to spam this forum. With that in mind please refrain from discussing costs and availability or anything else that would be construed as "commerce" and save those questions for the sale thread which I will post in the appropriate area. I'll bump this thread with a link when it is ready.
Other than discussing sales I invite discussion!
Thanks for following along.
This is done by running an extremely straight, hardened and finely ground shaft through the bore and letting things rest on the very level, very smooth thin ground parallels. There is very little drag or friction or bias of any type and the heavy side will repeatably find the bottom with this setup to within a few thousandths of a ounce. In order for this to work your setup needs to be finely finished and everything needs to be straight and level with no dirt, dents or other imperfections that would cause things to hang up.
So I let everything sit until it stops moving. This takes a few minutes. Once it has settled down I mark the high side with a sharpy. Then I start adding weights to it. I start with my "large" weights which weigh 3/4 of a gram until I find the mass that flips the disk around.
I have a drill mounted in a Bridgeport and I've set the stop on the quill so it drills a hole that removes an equivalent amount of steel as the weight of one weight. So, if a disk needed 5 weights to come around I drill four holes. Then it goes back onto the balancing setup for a finer adjustment. This time with weights that weigh .19 grams.
I repeat the process until it is level enough that a .19 gram weight will pull it around to the bottom regardless of where that weight is added which tells me I'm balanced within 30 thousandths of an ounce inch.
The balancing could be taken finer still, but let's be honest, most folks aren't going to be running these on ABEC7 super precision bearings, and any little amount of runout you have on the spindle in your motor that shifts the axis of the disk away from the axis of rotation is going to affect your balance more than this.
Balancing like this is a slow iterative process, which is going to be a bottle neck in releasing these, so I'll probably do a weekly release of only a few at a time. Please be patient while I process these.
The next step is broaching
Broaching is not rocket science.
I'm balancing before broaching because the material removed in broaching is similar to the material added by the key. The key is generally slightly less, but there is also the added weight of the little set screws, which I think makes it a wash given the small random variations there will be from one person's setup to the next. Given how close these are to the center of rotation the effect is not that great regardless. I tried it both ways and experimented with adding small weights on the same side of and opposite to the key and found that balancing before broach worked a little better.
Here's the finished final disk:
The last thing I do is spin it up on an unmounted motor and let it coast down. The motor is unrestrained so any vibration or other troubles would have an opportunity to show up here. Video if you're curious:
[video=youtube_share;-b_h7NaZxKg]http://youtu.be/-b_h7NaZxKg[/video]
And that completes this WIP.
This project was done at the request of the folks here on this forum. The purpose of this thread was to both illustrate the machining process and also to generate some awareness of the project so that folks would be aware of it when it was finished. So this thread was part documentary and part advertisement. I'd like to extend my gratitude to the folks on this forum for allowing this thread, as I am well aware it is blurring that line between legitimate WIP and overt sales. It is not my intent to spam this forum. With that in mind please refrain from discussing costs and availability or anything else that would be construed as "commerce" and save those questions for the sale thread which I will post in the appropriate area. I'll bump this thread with a link when it is ready.
Other than discussing sales I invite discussion!
Thanks for following along.
